| Place of Origin: | China |
|---|---|
| Brand Name: | YUBEI |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiate |
| Packaging Details: | carton or wooden case or pallet packing |
| Delivery Time: | 30 work days |
| Supply Ability: | 300pcs one month |
| Product Name: | Alumina Ceramic Impeller | Material: | 99% Al2O3 |
|---|---|---|---|
| Size: | Customize | Density: | 3.85g/cm3 |
| Dielectric Strength: | 15*10^6V/m | Compressive Strength: | 2400MPa |
| High Light: | Mechanical Ceramic Impeller,99% Alumina Ceramic Components,Industrial Alumina Ceramic Components |
||
Mechanical Ceramic Impeller Industrial Alumina Ceramic Parts
We can manufacture and supply a full variation of high alumina ceramics, such as alumina plates, discs, rods, tubing, rings, etc. It is the most widely used technical ceramic and the material of choice in about 80% of engineering applications due to its combination of properties.
Sintered at over 1600°C (2900°F) to give a fully dense technical ceramic, alumina exhibits high mechanical strength, rigidity and can be machined to tight tolerances and fine surface finishes. Alumina is often used as a replacement for metallic components in demanding engineering applications.
Manufacturing:
| Size | Customized |
| Material | 99% Al2O3 |
| Lead time | 30 days |
| FOB port | Shanghai port |
Specifications:
| Properties | Item | Unit | 99% Alumina | 95% Alumina |
| Mechanical Property | Color | -- | Light Yellow | White |
| Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
| Mechanical Property | Bending Strength | MPa | 310 | 300 |
| Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
| Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
| Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
| Mechanical Property | Weber Coefficient | m | 12 | 12 |
| Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
| Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
| Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
| Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
| Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
| Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
| Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
| Electrical Property | Dielectric Constant | εr | 10 |
9 |

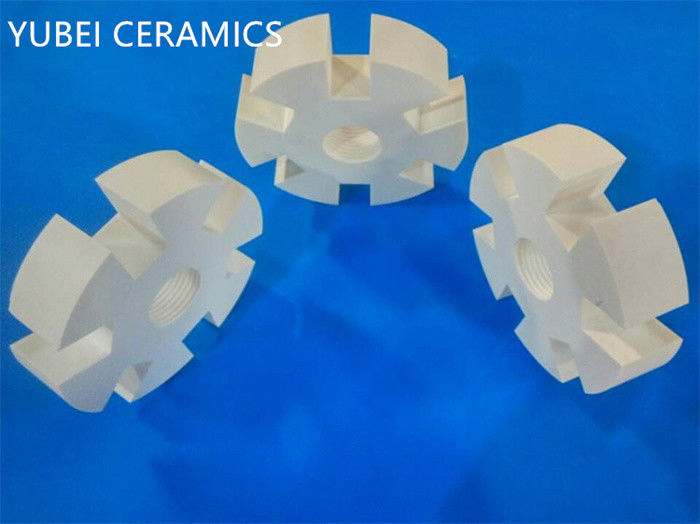

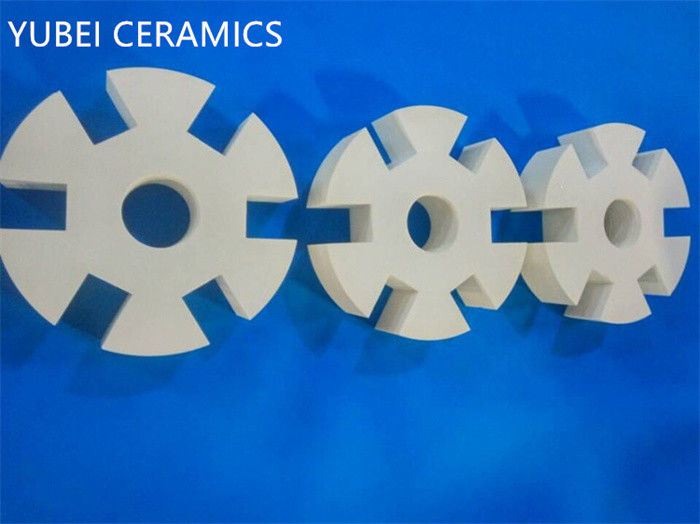

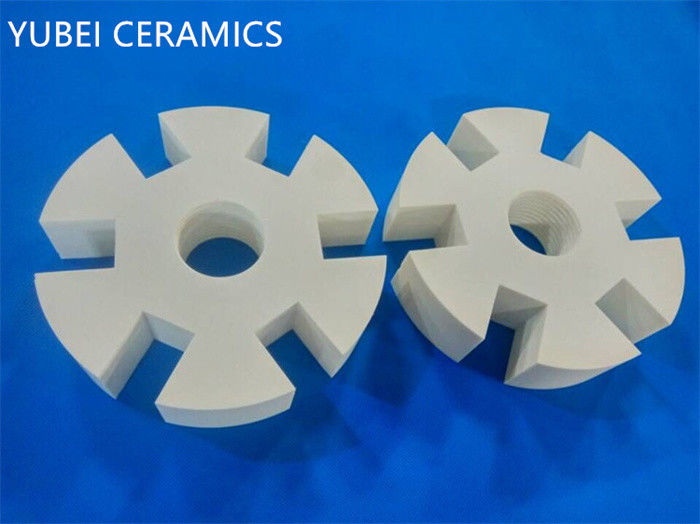

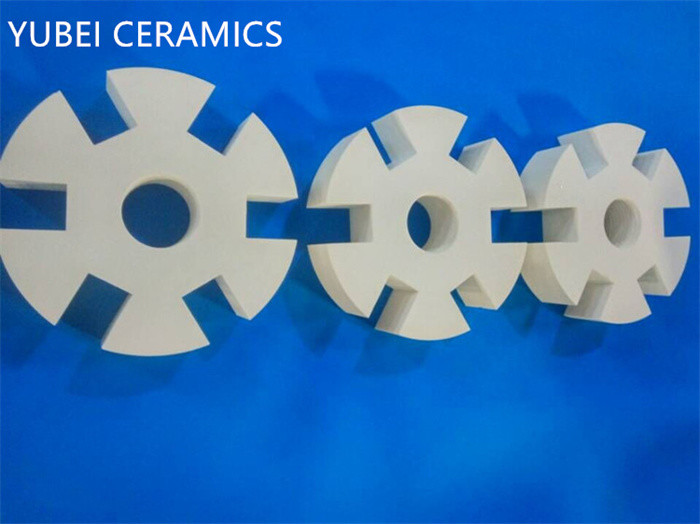

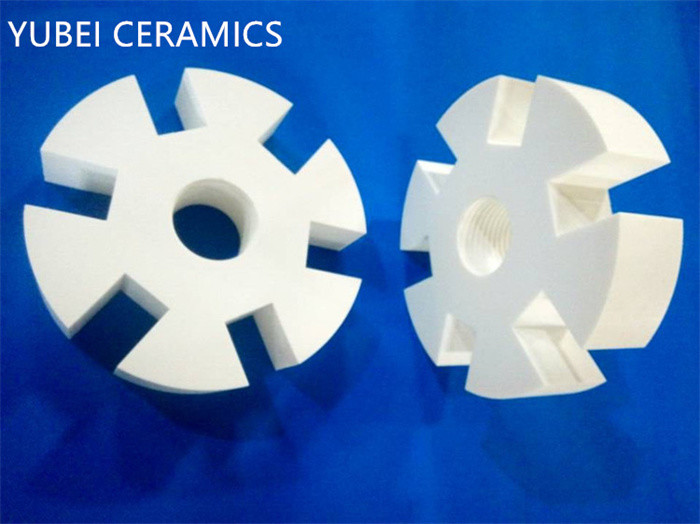

99% Alumina Ceramic Impeller
FAQ:
1. Are you a factory?
Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.
5. Which is the nearest port?
Shanghai port is the nearest one from us. It takes about 2-3 hours to get to shanghai port.
