| Place of Origin: | China |
|---|---|
| Brand Name: | YUBEI |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiate |
| Packaging Details: | carton or wooden case or pallet packing |
| Delivery Time: | 30 work days |
| Supply Ability: | 50pcs one month |
| Product Name: | Alumina Ceramic Rods | Material: | 99% Al2O3 |
|---|---|---|---|
| Compressive Strength: | 2400MPa | Bending Strength: | 310MPa |
| Dielectric Strength: | 15*10^6V/m | Dielectric Constant: | 10 |
| Max. Temperature: | 1600℃ | Color: | Ivory |
| High Light: | 95% Alumina Ceramic Rods,Wear Resistant Alumina Ceramic Rods,Aluminium Oxide Ceramic Shaft |
||
YUBEI CERAMICS is a professional technical ceramics manufacturer, we offers an extensive line of alumina ceramics. Our team of experts tailor the choice of alumina grade to meet the specific application requirements.
We have more than 10 years experience in ceramic manufacturing. Products can be customized by drawings or samples. Whether the usual discs, plates, tubes, rods, rings, or some special structual ceramics, we can make for you. Please send us your drawings for best prices.
Manufacturing:
| Material | 95% or 99% alumina ceramic |
| Lead time | 30 days |
| Processing | Grinding |
| FOB port | Shanghai port |
| Properties | Item | Unit | 99% Alumina | 95% Alumina |
| Mechanical Property | Color | -- | Light Yellow | White |
| Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
| Mechanical Property | Bending Strength | MPa | 310 | 300 |
| Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
| Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
| Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
| Mechanical Property | Weber Coefficient | m | 12 | 12 |
| Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
| Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
| Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
| Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
| Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
| Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
| Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
| Electrical Property | Dielectric Constant | εr | 10 |
9 |

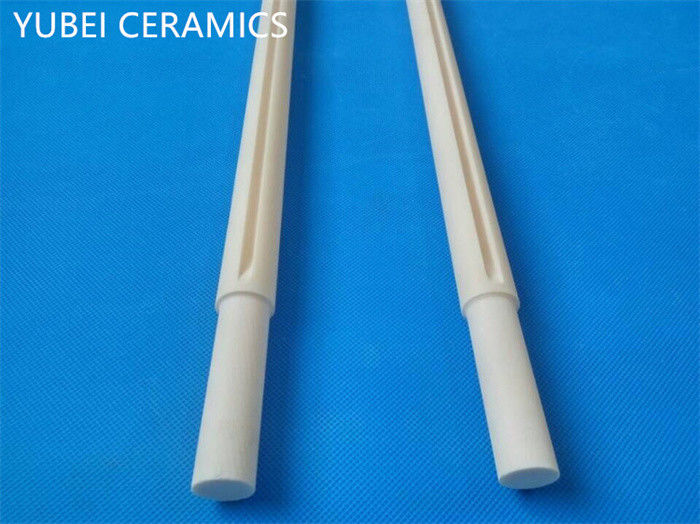

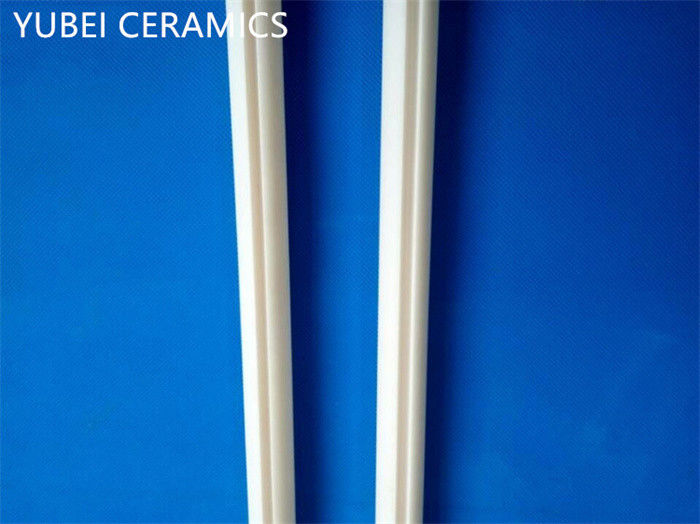

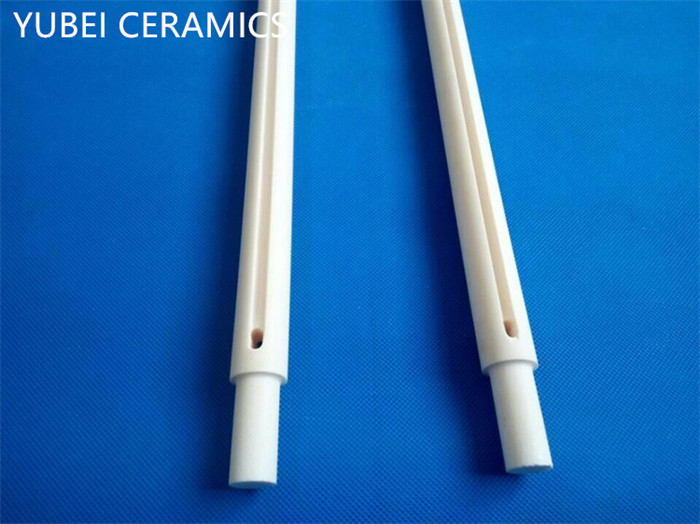

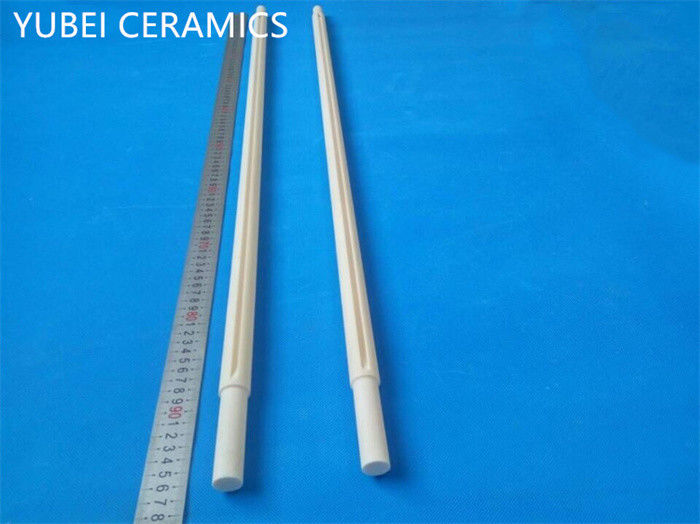

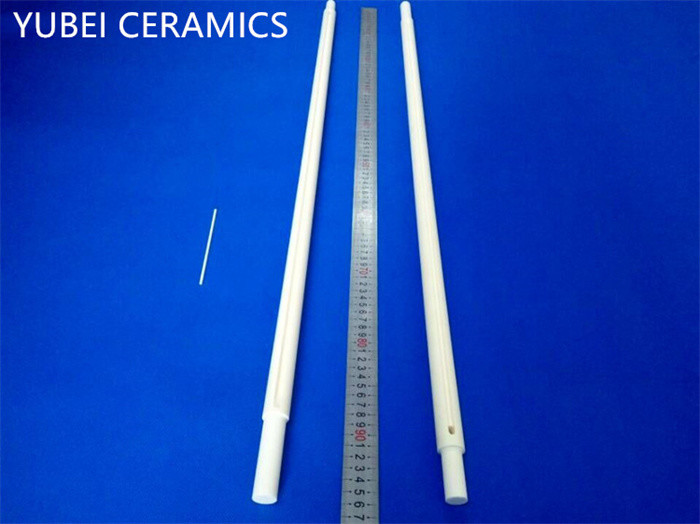

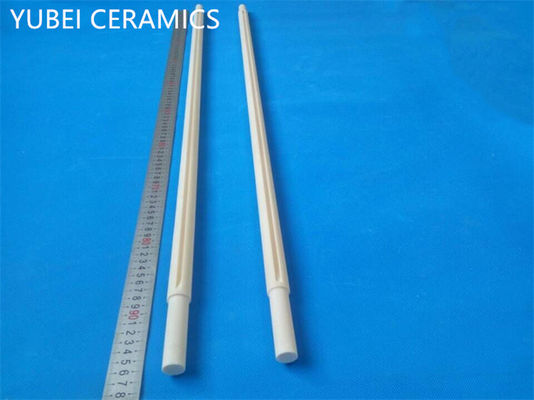

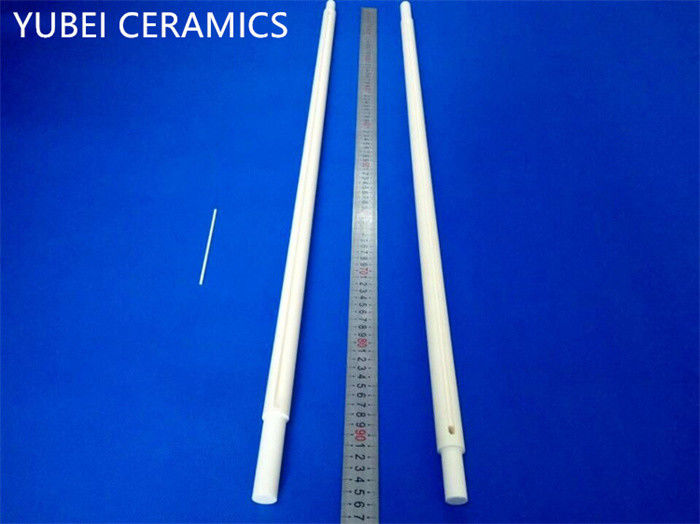

99% Alumina Ceramic Rods
FAQ:
1. Are you a factory?
Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. What's the production process?
Our products are made mainly in cold isostatic pressing, dry pressing and hot press moulding technique. Hot press moulding technique, which was used to shape small and medium size and complicated structure ceramic, is a favorable method.
5. How about the delivery?
Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.
6. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.
