| Place of Origin: | China |
|---|---|
| Brand Name: | YUBEI |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 20pcs |
| Price: | Negotiate |
| Packaging Details: | carton or wooden case or pallet packing |
| Delivery Time: | 30 work days |
| Supply Ability: | 1000pcs one month |
| Product Name: | Insulating Alumina Ceramic Ring | Material: | 99% Al2O3 |
|---|---|---|---|
| Dielectric Constant: | 10 | Compressive Strength: | 2400MPa |
| Thermal Conductivity: | 29W/mK | Bending Strength: | 310MPa |
| Density: | 3.85g/cm3 | Hardness: | 89HRA |
| High Light: | Aluminum Oxide Ceramic Gaskets,Alumina Ceramic Gasket |
||

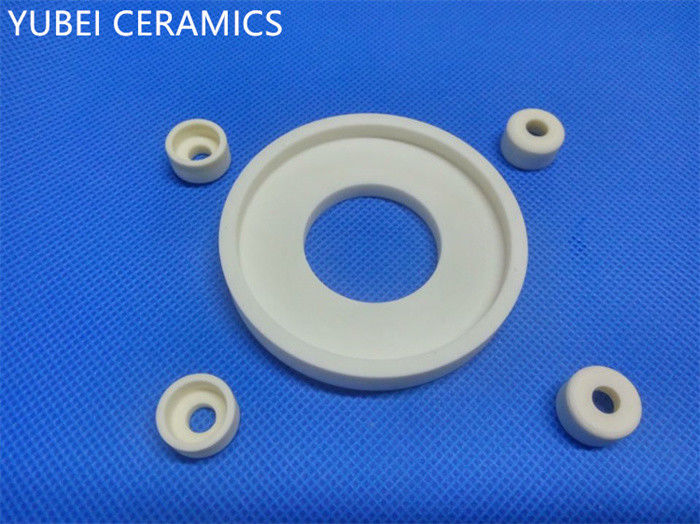

Supply Insulating Alumina Ceramic Ring 99 Aluminum Oxide Ceramic Gasket
Alumina ceramics(Al2O3) is the most common technical ceramics material, it can be divided into multiple application grades according to their alumina content, such as 75%, 80%, 95%, 99%, 99.5%, 99.7%, etc.
| Size | Customize by drawings or samples |
| Material | 99% alumina ceramic |
| Delivery time | 15-30 days |
| FOB port | Shanghai port |
Features of alumina ceramics:
Extremely high operating temperature
Very high hardness and compressive strength
Excellent electrical insulation properties
Corrosion and wear resistance
Technical data:
| Properties | Item | Unit | 99% Alumina | 95% Alumina |
| Mechanical Property | Color | -- | Light Yellow | White |
| Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
| Mechanical Property | Bending Strength | MPa | 310 | 300 |
| Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
| Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
| Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
| Mechanical Property | Weber Coefficient | m | 12 | 12 |
| Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
| Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
| Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
| Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
| Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
| Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
| Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
| Electrical Property | Dielectric Constant | εr | 10 |
9 |

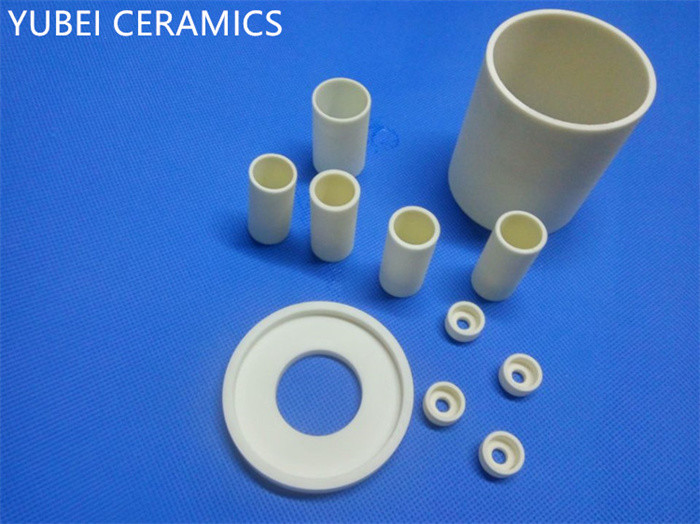

99% Alumina Ceramic
FAQ:
1. Are you a factory?
Yes, we're a factory professinally producing industrial ceramics. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. What's the size of it?
Products are always customized according to drawings or samples. Diameter and height within 500mm are available.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. What's the production process?
Our products are made mainly in cold isostatic pressing, dry pressing and hot press moulding technique.
5. How about the delivery?
Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.
6. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.
7. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
8. Which is the nearest port?
Shanghai port is the nearest one from us. It takes about 2-3 hours to get to shanghai port.
