Refractory 99% 99.5% Al2O3 Ceramic Alumina Plate / Sheet / Setter

Product Details:
Place of Origin: China
Brand Name: Jinghui Ceramics
Certification: RoHS, REACH, ISO
Model Number: JH.ACP.001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton with wooden carton
Delivery Time: 4~5 weeks after receiving the order
Payment Terms: T/T, Western Union, Paypal, , L/C
Supply Ability: 50000 pieces per month

Detail Information

Product Name: Alumina Ceramic Plate/ Sheet Material: Over 99% Alumina
Color: Ivory, White Optional Type: Industry Ceramic Plates
Density: Above 3.85 G/cm3 Size: Customers' Requests
Usage: Refactory Heating Plate Shape: Customized Requirement
Working Temperature: 1650℃ Advantage: Anti High Temperature
Application: Ceramic Setter For Furnace
High Light:

ceramic burner plate


infrared honeycomb ceramic burner plate

Product Description

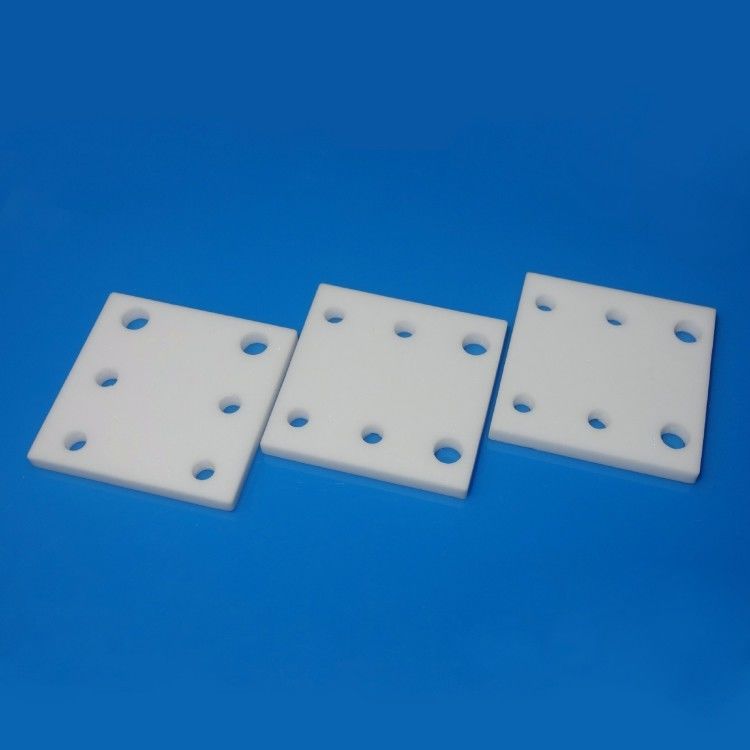

Refractory 99% 99.5% Al2O3 Ceramic Alumina Plate / Sheet / Setter

Aluminum oxide ceramics have an exceptional anti-high temperature, high thermal conductivity, good conductivity, mechanical strength, high hardness, and good wear resistance.
It usually takes use of producing a variety of ceramic setters for furnaces.   The max. service temperature can be extended to 1750℃.
Besides, it's easy to get an ideal flatness on the working board via flat grinding, then will greatly benefit the application.

Specification and production capability

Material alumina, corundum-mullite, silicon nitride, silicon carbide
Max. size length-side, 600mm x 500mm. thickness to be 30mm
Flatness To be 0.05mm Roundness To be 0.005mm
Surface treatment Polished, fine ground
Cosmetic Smooth surface without crack and deformation


Property Technical Data. Sheet

General Properties Unit The grade of material
99.5%Al2O3 99%Al2O3 95%Al2O3
Mechanical Density g/cm3 ≥3.85 ≥3.80 ≥3.60
Water absorption % 0 0 0
Hardness HV 1700 1700 1500
Flexural strength Mpa ≥379 ≥338 ≥320
Compressive strength Mpa ≥2240 ≥2240 ≥2000
Fracture toughness Mpa m 1/2 4-5 4-5 3-4
Thermal Max. service temperature
1675 1600 1550
CTE(20~800℃) 1×10 -6 /℃ 6.5~8.0 6.2~8.0 5.0~8.0
Thermal shock T(℃) ≥250 ≥200 ≥220
Thermal conductivity(W/m.k) (W/m.k) / 25℃ 30 29 24
Electrical Volume resistivity(25℃ ) >1 x 10 14 >1 x 10 14 >1 x 10 14
Insulation strength KV/mm 19 18 18
Dielectric constant(1Mhz) (E) 9.7 9.5 9.5










Manufacturing flow chart of technical ceramic parts

Refractory 99% 99.5% Al2O3 Ceramic Alumina Plate / Sheet / Setter 0


We have in-housing comprehensive manufacturing types of equipment, including forming, sintering, CNC machining, precision grinding, laser cutting and so on, it helps us to control the quality very well, also it greatly benefits to cost control.


Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving,

then it will prevent them from collision each other, to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.


Refractory 99% 99.5% Al2O3 Ceramic Alumina Plate / Sheet / Setter 1


Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM              ★Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment     ★Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service                             ★Abide all orders as the first priority


FAQs (Frequently Asked Questions)

Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.

Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.

Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours

Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.

Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.

Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.

Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
