China Ceramic Alumina Tube manufacturer

High Performance Ceramic Wire Guides , Customized Ceramic Pigtail Wear Resistant

Product Details:
Place of Origin: China
Brand Name: Jinghui Ceramics
Certification: RoHS, REACH, ISO
Model Number: JH.CWG-001
Payment & Shipping Terms:
Minimum Order Quantity: 1000 piece per order
Price: Negotiable
Packaging Details: Plastic bag with export carton
Delivery Time: 3~4 weeks
Payment Terms: T/T, Western Union, Paypal, MoneyGram, L/C
Supply Ability: 5000000 pcs per month

Detail Information

Product Name: Ceramic Eyelets Material: Ceramic
Color: White, Pink Or Ivory Dimensions: As The Drawing
Finish: Fine Polished Surface Finish: Polish Ra0.2
Feature: High Hardness; Wear/corrosion Resistance Application: Wire Guide For Textile Machinery
Shipment: By Air Or Sea HS Code: 8145700000
High Light:

ceramic pigtail


ceramic guides for textile machines

Product Description

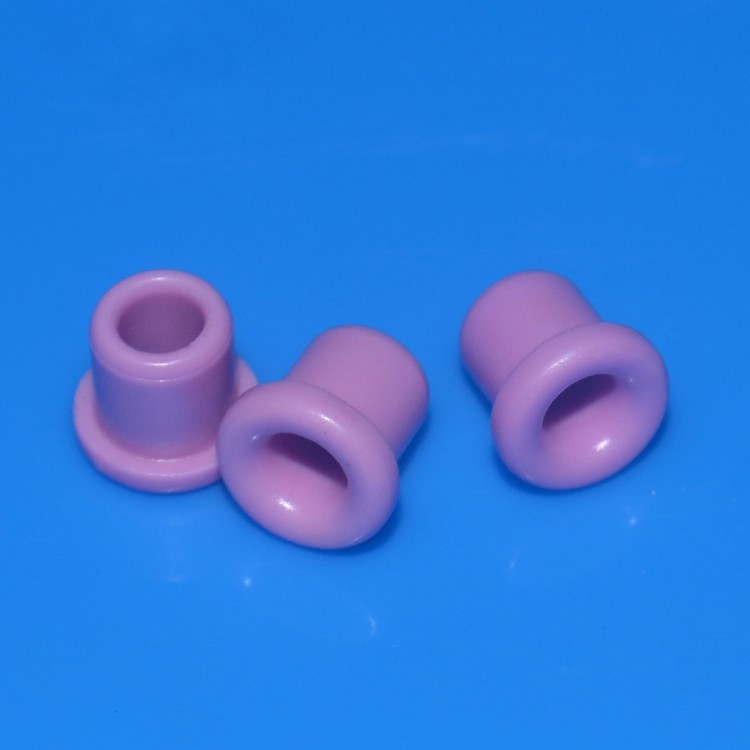

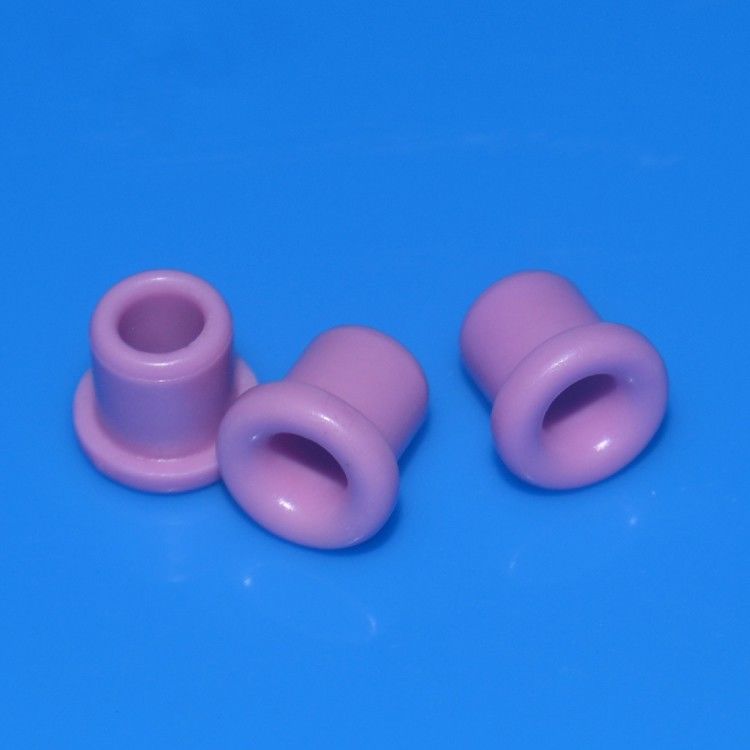

Wear Resistant Well Polished 95% 99% Alumina Ceramic Eyelets For Textile

In order to prolong the service life and decrease the maintenance cycles of textile machines, technical ceramic wire guides have been widely used in almost all textile machinery because of super wear resistance, high hardness, antistatic, and low friction.

With our 15 years of manufacturing, We have hundreds of standard ceramic eyelets for customers' selection.

High Performance Ceramic Wire Guides , Customized Ceramic Pigtail Wear Resistant 0

Specification and production capability

Material option: alumina, zirconia, steatite, silicon carbide
Dimensional capability: Min. OD can be 0.30 mm; Max. OD to be 30 mm
Tolerance: OD best to be 0.005 mm, overall length to be 0.01 mm
Roughness Best to be Ra 0.2 Roundness Best to be 0.005 mm
Surface treatment: Polished, Glazed, Metalized availability
Cosmetic quality: Smooth surface without no contamination, deformation, and crack

Packaging proposal and transportation solutions

1. We will keep the ceramic parts inside the inner package to be fixed without moving, then it will prevent them from collision each other, to avoid any cause any chippings during transportation.

2. In addition, the inside of the outer carton will be filled with sufficient protective kinds of stuff.

High Performance Ceramic Wire Guides , Customized Ceramic Pigtail Wear Resistant 1

Why choose us?
★ 10+ Years of manufacturing experience in OEM, ODM ★Powerful R&D, mass production capability
★ In-house comprehensive manufacturing types of equipment ★Rigorous quality control system and processes
★ Surpassing pre-sales and after-sales service ★Abide all orders as the first priority

Q1. Are you a factory or trading company?
A: We are a manufacturer. You are welcome to visit our factory.
Q2: Do you send a sample to check?
A: Sure, the sample is free and freight collect.
Q3: When will you ship it?
A: If the products are in storage, we'll ship within 48 hours
Q4: When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry. If you are in urgent need of getting the price.
Please call us or tell us in your email so that we will proceed with your inquiry as a priority.
Q5: Is it available to provide customized products?
A: We always support custom-made demand as per different materials, dimensions, and designs.
Q6: How to ensure quality?
A: The dimension out of any batch will be carried out sampling inspection per international AQL standard. A 100% cosmetic inspection will be done.
Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic substrates, ceramic sheets, textile ceramics besides metalized ceramics.
