Product Name: Metallized Ceramic Insulator Type: Ceramic Parts
Raw Material: 95%-99% Alumina Ceramic Density: Over 3.65g/cm3
Color: White,Ivory, Pink Shape: Customized Designs
Package: Vacuum Packaging Usage: For Medical X-Ray Tube
High Light:

ceramic electrical insulators


ceramic standoff insulators

Product Description

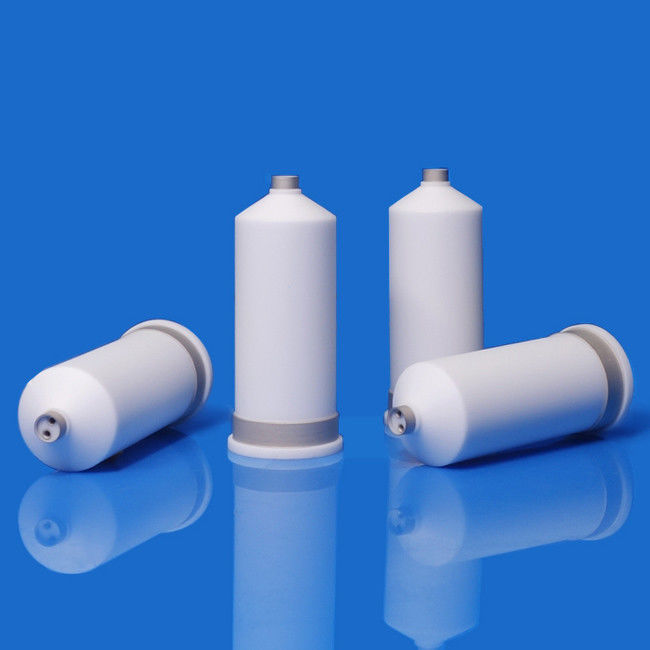

High Voltage Alumina Metalized Ceramic Insulator for Medical X-Ray Tube

1. It's made of 95% aluminum oxide ceramics which has superb mechanical, electrical thermal properties.

2. The metallic layer will be applied to a certain surface of ceramic parts which cured by high temperature;

3. Then the metallic layer will adhere the section tightly to achieve ceramic to ceramic, ceramic to metal jointing.

4. Jointing type of metallization

● Ceramic base + Molybdenum-Manganese ( Mo - Mn) metallization,   20 ~ 40um thick

● Ceramic base + Silver ( Ag) plating,   2~ 80um thick

● Ceramic base + Molybdenum-Manganese (Mo - Mn) + Nickle (Ni) plating, Mo/Mn: 20 ~ 40um thick, Ni: 2~6um thick

● Ceramic base + Tungsten ( W) + Gold (Au) plating, W: 20~40um thick, Au:  0.2um thick


Main features of metallized ceramic insulators:

● High bonding/brazing strength                                   ● Min. electric resistance and vacuum tightness

● High mechanical strength, insulation strength           ● Anti-chemical, anti-aging without corrosion

● Super wear resistance with long service life

Key performance parameters of metallized ceramics

Leak rate

≤1×10-11 Pa•m3 / s Metal layer tensile strength ≥ 150Mpa

Volume resistivity

≥108Ω•cm CTE (6.5 ~ 8.0) × 10-6 /°C

Insulation strength

≥18kV/mm (D•C) Dielectric constant 9~10(1MHz, 20°C)

Visual quality: 1. No cracks, no bubbles; 2. Evenly distributed glaze; 3. No contamination



The main application of metallized ceramic insulators:

Metallized ceramic insulators are widely used in electronics, high-vacuum technology, sensors, and medical fields, like vacuum interrupters, electron tubes, feedthroughs, medical linear accelerators/ power tubes, photomultipliers, X-ray tubes, and pressure sensors.



Other related metallized ceramic insulators

We are capable of producing a great many complicated structure metallized ceramic insulators as per customer's specification, special needs. Whatever, it's a small-size part or large-size part, we could achieve it well.

Medical X Ray Tube Ceramic Electrical Insulators 96% Purity High Voltage 0


Packaging proposal and transportation

1. Vacuum packaging with drier as the inner package;

2. An exported carton as the outer package;

3. The wooden case will be used if needed.
Medical X Ray Tube Ceramic Electrical Insulators 96% Purity High Voltage 1

Why choose us?

★ 10+ Years of manufacturing experience in OEM, ODM                  ★ Powerful R&D, mass production capability

★ In-house comprehensive manufacturing types of equipment         ★ Rigorous quality control system and processes

★ Surpassing pre-sales and after-sales service                                 ★ Abide all orders as the first priority

FAQs(Frequently Asked Questions)

Q1. Are you a factory or trading company?
A: We are a direct manufacturer who owns the complete manufacturing line from shaping to electroplating.

Q2: Can you send a sample to check?
A: Sure, the standard samples in stock are free and freight collect.

For new parts, we accept trial/sample order with a very small quantity to prototyping needs or qualifications.

Q3: When will you ship it?
A: If the products are in storage, we'll ship within 3 working days.

For customized ceramic components, the regular lead time is 4~5 weeks after receiving the deposit.

Q4: When can I get the price?
A: We regularly quote within 12 hours after we get your inquiry.
Please call us +86-755-26759158, or email us for an urgent need, then we will do with your inquiry as a priority.

Q5: Is it available to provide customized products?
A: We support various custom-made demands as per different materials, dimensions, and designs.

Q6: How do you ensure quality?
A: We have a rigorous and complete IQC, IPQC, OQC inspection system, also introduced both CPK and  AQL in the line.

Q7: What other products are you dealing with?
A: We focus on a variety of ceramic tubes, ceramic rods, ceramic sheets, textile ceramics besides metalized ceramics.
