Insulating Alumina Ceramic Rods 89HRA Mechanical Alumina Ceramic Bar

Basic Information
Place of Origin: China
Brand Name: YUBEI
Certification: ISO9001
Minimum Order Quantity: 100pcs
Price: Negotiate
Packaging Details: carton or wooden case or pallet packing
Delivery Time: 30 work days
Supply Ability: 1000pcs one month
Detail Information
Product Name: Alumina Ceramic Rods Material: 99% Al2O3
Compressive Strength: 2400MPa Bending Strength: 310MPa
Hardness: 89HRA Elastic Modulus: 340GPa
High Light:

Insulating Alumina Ceramic Rods


Alumina Ceramic Rods 89HRA


Mechanical Alumina Ceramic Bar

Product Description

Insulating Alumina Ceramic Rod Al2O3 Ceramic Bar Mechanical Ceramic


    Ceramic rods can be fabricated in round, square or rectangular shapes according to your requirements.


    Due to the excellent physical and chemical performance, ceramic rods can be used in industries such as mechanical engineering, aerospace, electronic, furnace, chemical engineering, energy and power engineering, smelting, and semiconductor.


    We are a professional manufacturer of ceramic rods, customize different specifications of ceramic parts, according to your drawings or samples.




Size Customized
Material 99% alumina ceramic
Lead time 30 days
FOB port Shanghai port



Properties Item Unit 99% Alumina 95% Alumina
Mechanical Property Color -- Light Yellow White
Mechanical Property Density g/cm3 3.85 3.6
Mechanical Property Bending Strength MPa 310 300
Mechanical Property Compressive Strength MPa 2400 2300
Mechanical Property Elastic Modulus GPa 340 320
Mechanical Property Fracture Toughness MPam1/2 3-4 3-4
Mechanical Property Weber Coefficient m 12 12
Mechanical Property Vickers Hardness HV0.5 1600 1400
Thermal Property Coefficient of Line Thermal Expansion 10-6K-1 7-8 7-8
Thermal Property Thermal Conductivity W/mK 29 20
Thermal Property Thermal Shock Resistance( in water) ΔT℃ 200 250
Thermal Property Max Working Temperature 1600 1500
Electrical Property Volume Resistance at 20℃ Ωcm >1014 >1014
Electrical Property Dielectric Strength V/m 15X106 15X106
Electrical Property Dielectric Constant εr 10

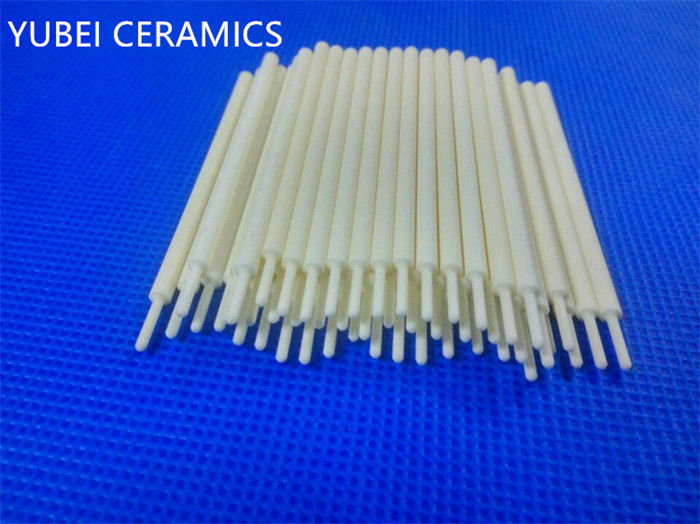

99% Alumina Ceramic Rods

Insulating Alumina Ceramic Rods 89HRA Mechanical Alumina Ceramic Bar 0Insulating Alumina Ceramic Rods 89HRA Mechanical Alumina Ceramic Bar 1Insulating Alumina Ceramic Rods 89HRA Mechanical Alumina Ceramic Bar 2




1. Are you a factory?

    Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.


2. What's the price for it?

    It depends. Prices are caculated by the drawing size and structure.


3. How about the delivery?

    Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.


4. How's the packing?

    The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof

materials to protect them.


5. Can you do the finish maching?

    Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
