| Place of Origin: | China |
|---|---|
| Brand Name: | YUBEI |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiate |
| Packaging Details: | carton or wooden case or pallet packing |
| Delivery Time: | 30 work days |
| Supply Ability: | 100pcs one month |
| Product Name: | Alumina Ceramic Plate | Material: | 95% Al2O3 |
|---|---|---|---|
| Max Temperature: | 1500℃ | Elastic Modulus: | 300GPa |
| Color: | Light Yellow | Density: | 3.85g/cm3 |
| Surface: | Polishing | Compressive Strength: | 2400MPa |
| High Light: | Polishing Alumina Ceramic Plates,Round Alumina Ceramic Plates,Al2O3 Ceramic Insulation Sheets |
||
Polishing Alumina Ceramic Disc Insulating Alumina Round Plate
The alumina plate is made of aluminum oxide ceramics. Alumina is a ceramic material with high thermal conductivity, compressive strength, and thermal shock resistance. It also has a low thermal expansion, making it a suitable material for furnace use, in the crucible, tube, and thermocouple sheath form.
Aluminum oxide ceramic plates can withstand high temperatures and maintain high strength and hardness. Alumina ceramic plates also have excellent performances in electrical insulation, high chemical resistance, good were resistance and heat resistance, and low thermal expansion. YUBEI CERAMICS co., have various sizes of semi-finished shapes in stock and are able to customize kinds of alumina components for you.
Manufacturing:
| Size | Within 500mm can be made |
| Material | 99% Al2O3 |
| Surface | Grinding or polishing |
| Packing | Carton, wooden case, pallet |
| Delivery time | About 30 days |
Specifications:
| Properties | Item | Unit | 99% Alumina | 95% Alumina |
| Mechanical Property | Color | -- | Light Yellow | White |
| Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
| Mechanical Property | Bending Strength | MPa | 310 | 300 |
| Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
| Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
| Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
| Mechanical Property | Weber Coefficient | m | 12 | 12 |
| Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
| Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
| Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
| Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
| Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
| Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
| Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
| Electrical Property | Dielectric Constant | εr | 10 |
9 |

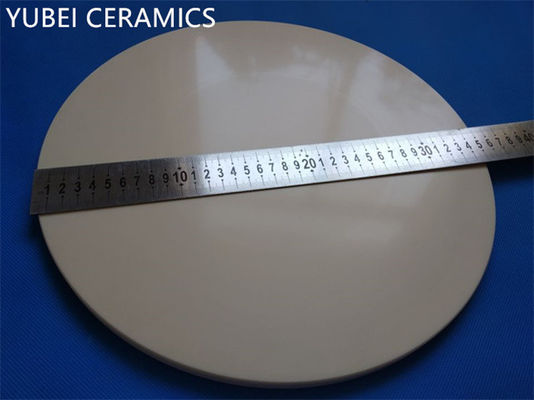

95% Aluminum Oxide Ceramic Plate
FAQ:
1. Are you a factory?
Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
3. What's the production process?
Our products are made mainly in cold isostatic pressing, dry pressing and hot press moulding technique. Hot press moulding technique, which was used to shape small and medium size and complicated structure ceramic, is a favorable method.
4. How about the delivery?
Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.
5. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.
6. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
