| Place of Origin: | China |
|---|---|
| Brand Name: | YUBEI |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiate |
| Packaging Details: | cartons |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50pcs per month |
| Surface Treatment: | Glazed | Color: | White Or Ivory |
|---|---|---|---|
| Insulation Resistance: | 10^14Ω.cm | Density: | 3.8-3.9g/cm3 |
| Shape: | Tube | Application: | Electronic Components |
| Dielectric Strength: | 20kv/mm | Dielectric Constant: | 10 |

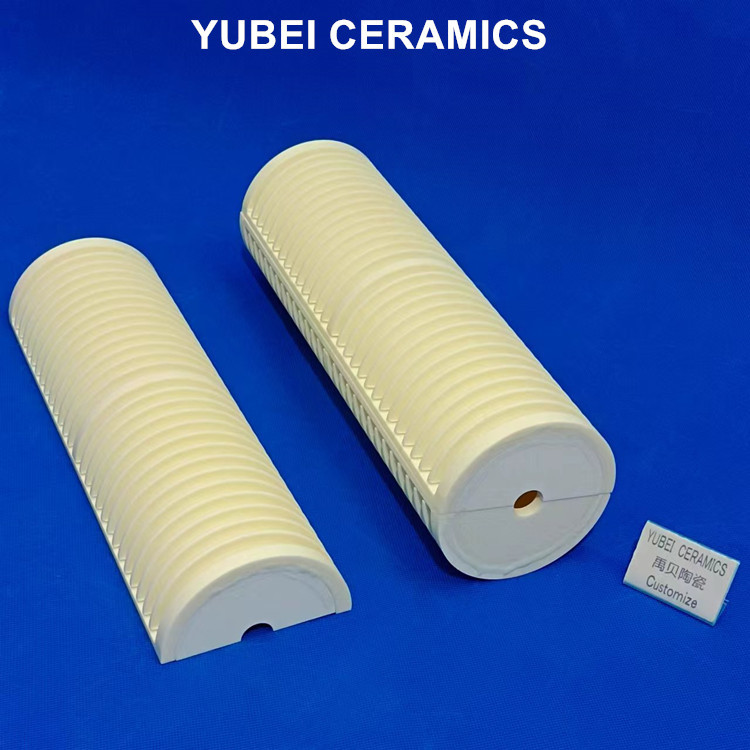

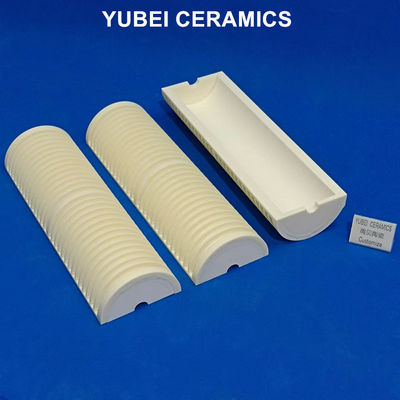

| Highlight: | Harsh Environments Alumina Ceramic Half Tubes,High Density Alumina Ceramic Half Tubes,99% Al2O3 Alumina Ceramic Half Tubes |
||
These Alumina Ceramic Cylinders are ideal for use in electronic components, where they can serve as insulators or conductors. They are also commonly used in the chemical and oil industries as they are highly resistant to corrosion and chemical attack. Additionally, their high thermal conductivity makes them a popular choice for heat exchangers and other high-temperature applications.
The Alumina Ceramic Pipes are glazed, giving them a smooth surface finish that is not only aesthetically pleasing but also provides added protection against wear and tear. The glazed surface also helps to prevent the accumulation of contaminants, which can cause damage to electronic components and other sensitive equipment.
These Alumina Ceramic Cylinders are available in a range of sizes and shapes, making them suitable for a wide range of applications. They are also highly customizable, allowing you to choose the exact specifications that meet your needs. Whether you need Alumina Ceramic Cylinders for use in electronic components or other industrial applications, these high-quality ceramic pipes are an excellent choice.
| Product Attribute | Value |
|---|---|
| Product Name | Alumina Ceramic Tubes/Bushings |
| Size | Customized |
| Color | White or Light Yellow |
| Flexural Strength | 310MPa |
| Dielectric Constant | 10 |
| Insulation Resistance | 10^14Ω.cm |
| Thermal Expansion | 7~8*10-6/k |
| Application | Electronic Components |
| Material | Alumina Ceramic |
| Surface Treatment | Glazed |
| Thermal Conductivity | 29w/m.k |
Alumina Ceramic Tubes are commonly used as Alumina Ceramic Cylinders, Alumina Ceramic Bushings, and Alumina Ceramic Pipes. These tubes are ideal for use in high-temperature and high-pressure environments, such as in the chemical, petrochemical, and metallurgical industries. They are also used in the semiconductor, electronic, and electrical industries because of their excellent electrical insulation properties.
The high strength and hardness of Alumina Ceramic Tubes make them suitable for applications that require wear-resistant and corrosion-resistant materials. These tubes can be used as liners, sleeves, and bearings in equipment that processes abrasive or corrosive materials. They can also be used as nozzles, rods, and crucibles in high-temperature applications.
Alumina Ceramic Tubes are also used in the medical and dental industries for various purposes, such as dental implants and prosthetics. These tubes are biocompatible, which means they do not cause an immune response or toxicity in the body, making them safe for use in medical applications.
Overall, Alumina Ceramic Tubes are versatile, high-performance ceramic products that can be used in a wide range of industrial applications. Their excellent mechanical and thermal properties, combined with their customization options, make them a reliable choice for various industrial needs.
