High Hardness Sic Ceramics Disc 400GPa Silicon Carbide Plate

Basic Information
Place of Origin: China
Brand Name: YUBEI
Certification: ISO9001
Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: cartons
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50pcs per month
Detail Information
Product Name: Silicon Carbide Plate Material: SSiC
Thermal Conductivity: 100-120W/mK Compressive Strength: ≥2200MPa
Bending Strength: ≥400MPa Elastic Modulus: 400GPa
High Light:

High Hardness Sic Ceramics

,

Sic Ceramics Disc

,

400GPa Silicon Carbide Plate


Product Description

Factory Supply Sic Ceramic Plate Ssic Ceramic Disc High Hardness And Strength



    Silicon carbide has two commonly used basic varieties, black silicon carbide and green silicon carbide, both of which belong to α-SiC.



    1. Black silicon carbide contains about 95% SiC, and its toughness is higher than that of green silicon carbide. It is mostly used for processing materials with low tensile strength, such as glass, ceramics, stone, refractory materials, cast iron and non-ferrous metals.



    2. Green silicon carbide contains more than 97% SiC and has good self-sharpening properties. It is mostly used for processing hard alloys, titanium alloys and optical glass, and is also used for honing cylinder liners and fine grinding high-speed steel tools.


Technical parameters of SSIC:

Items Unit SSIC
Volume density g/cm3 ≥3.10
Hardness HRA ≥92
Compressive strength MPa ≥2200
Flexural strength MPa ≥400
Silicon carbide content % ≥98
Modulus of elasticity GPa 400
Thermal conductivity W/mK 100-120
Max working temperature 1600
Coefficient of thermal expansion 1.10-6m/k 4.0

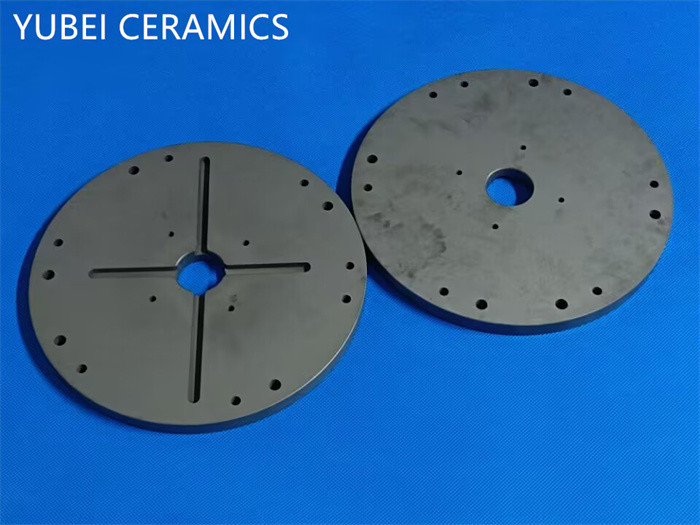

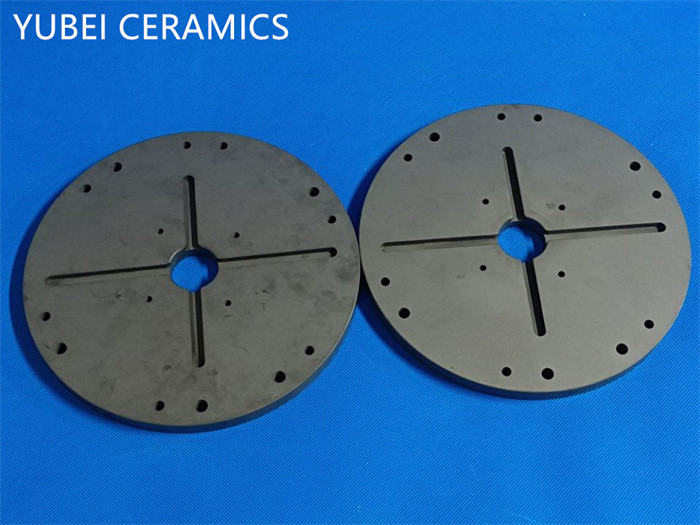

High Hardness Sic Ceramics Disc 400GPa Silicon Carbide Plate 0High Hardness Sic Ceramics Disc 400GPa Silicon Carbide Plate 1

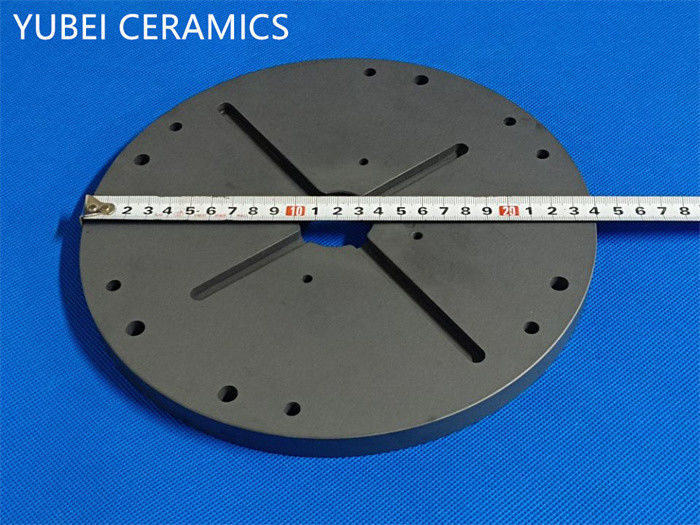

High Hardness Sic Ceramics Disc 400GPa Silicon Carbide Plate 2

FAQ:



1. Are you a factory?

    Yes, we're a factory professinally producing industrial ceramics. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.



2. What's the size of it?

   Products are always customized according to drawings or samples. Diameter within 400mm are available.



3. What's the price for it?

   It depends. Prices are caculated by the drawing size and structure.



4. What's the production process?

   Our products are made mainly in cold isostatic pressing and dry pressing.
