95% Alumina Ceramic Plates White Heat Dissipation Size Customized

Basic Information
Place of Origin: China
Brand Name: YUBEI
Certification: ISO9001
Minimum Order Quantity: 1000pcs
Price: Negotiate
Packaging Details: carton or wooden case or pallet packing
Delivery Time: 30 work days
Supply Ability: 10000pcs one month
Detail Information
Product Name: Ceramic Alumina Plate Material: 95% Al2O3
Elastic Modulus: 320GPa Density: 3.6g/cm3
Max Temperature: 1500℃ Thermal Conductivity: 20W/mK
High Light:

Heat Dissipation Alumina Ceramic Plates


95% Alumina Ceramic Plates


Alumina Ceramic Plates White

Product Description

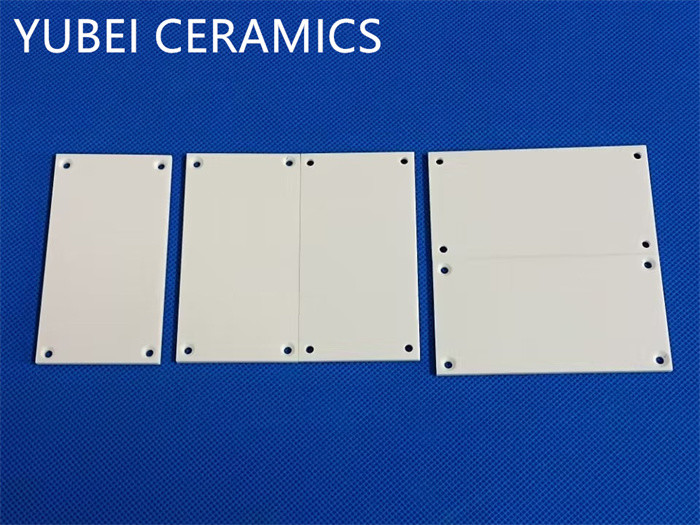

Positioning Alumina Ceramic Plate 95% White Alumina Heat Dissipation Ceramic Plate

    Our ceramic parts include tube, rod, plate, disc, wafer, ring, seal, beam, roller, shaft, screw, washer, sleeve, spacer, insulator, nozzle, guides, lining, milling ball, etc.


    Because most of our products are custom-made, if the existing products do not meet your expectations, please send us relevant drawings and requirements, you'll get the best prices instantly.




Properties Item Unit 99% Alumina 95% Alumina
Mechanical Property Color -- Light Yellow White
Mechanical Property Density g/cm3 3.85 3.6
Mechanical Property Bending Strength MPa 310 300
Mechanical Property Compressive Strength MPa 2400 2300
Mechanical Property Elastic Modulus GPa 340 320
Mechanical Property Fracture Toughness MPam1/2 3-4 3-4
Mechanical Property Weber Coefficient m 12 12
Mechanical Property Vickers Hardness HV0.5 1600 1400
Thermal Property Coefficient of Line Thermal Expansion 10-6K-1 7-8 7-8
Thermal Property Thermal Conductivity W/mK 29 20
Thermal Property Thermal Shock Resistance( in water) ΔT℃ 200 250
Thermal Property Max Working Temperature 1600 1500
Electrical Property Volume Resistance at 20℃ Ωcm >1014 >1014
Electrical Property Dielectric Strength V/m 15X106 15X106
Electrical Property Dielectric Constant εr 10



99% Aluminum Oxide Ceramic Plate

95% Alumina Ceramic Plates White Heat Dissipation Size Customized 095% Alumina Ceramic Plates White Heat Dissipation Size Customized 1


95% Alumina Ceramic Plates White Heat Dissipation Size Customized 2
