| Place of Origin: | China |
|---|---|
| Brand Name: | YUBEI |
| Certification: | ISO9001 |
| Minimum Order Quantity: | 10pcs |
| Price: | Negotiate |
| Packaging Details: | carton or wooden case or pallet packing |
| Delivery Time: | 30 work days |
| Supply Ability: | 100pcs one month |
| Product Name: | Alumina Ceramic Rings | Material: | 99% Al2O3 |
|---|---|---|---|
| Density: | 3.85g/cm3 | Elastic Modulus: | 340GPa |
| Thermal Shock Resistance: | 200ΔT℃ | Thermal Conductivity: | 29W/mK |
| High Light: | Wear Resistant Alumina Ceramic Rings,Customized Alumina Ceramic Rings,ISO9001 Wear Resistant Ceramic Ring |
||
Mechanical Ceramic Rings Alumina Ceramic Ring Wear Resistant
Aluminum oxide (alumina) is the workhorse of advanced technical ceramics. It has good mechanical and electrical properties, wear resistance and corrosion resistance. It has relatively poor thermal shock resistance. It is used as an electrical insulator for a number of electrical and electronic applications, including spark plug insulators and electronic substrates. It is also used in chemical, medical and wear applications.
| Size | Customized |
| Material | 95% or 99% alumina |
| Lead time | 30 days |
| Processing | Precision grinding |
| Properties | Item | Unit | 99% Alumina | 95% Alumina |
| Mechanical Property | Color | -- | Light Yellow | White |
| Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
| Mechanical Property | Bending Strength | MPa | 310 | 300 |
| Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
| Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
| Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
| Mechanical Property | Weber Coefficient | m | 12 | 12 |
| Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
| Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
| Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
| Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
| Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
| Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
| Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
| Electrical Property | Dielectric Constant | εr | 10 |
9 |

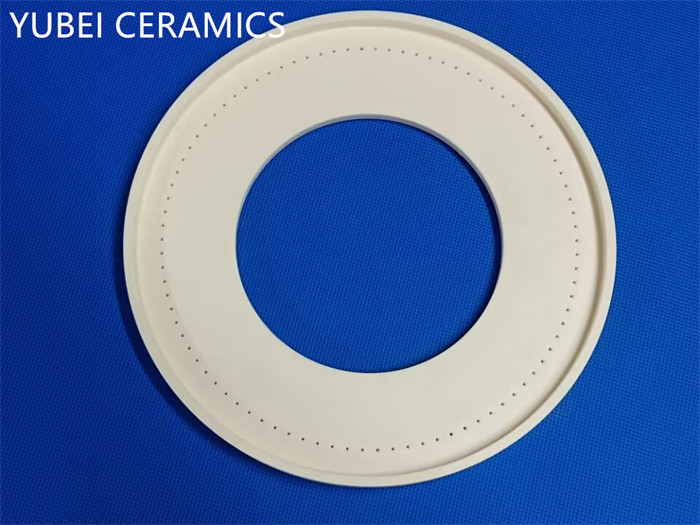

99% Alumina Ceramic Rings
FAQ:
1. Are you a factory?
Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. What's the size of it?
Products are always customized according to drawings or samples. Diameter and height within 500mm are available.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
