99% Al2O3 Ceramic Insulator Sleeves , Alumina Ceramic Insulator

Basic Information
Place of Origin: China
Brand Name: YUBEI
Certification: ISO9001
Minimum Order Quantity: 2pcs
Price: Negotiate
Packaging Details: carton or wooden case or pallet packing
Delivery Time: 30 work days
Supply Ability: 50pcs one month
Detail Information
Product Name: Insulating Alumina Ceramic Ring Material: 99% Al2O3
Dielectric Constant: 10 Thermal Conductivity: 29W/mK
Density: 3.85g/cm3 Hardness: 89HRA
High Light:

Al2O3 Ceramic Insulator Sleeves


Alumina Ceramic Insulator Sleeves


Alumina Ceramic Insulator

Product Description

Supply Insulating Alumina Ceramic Ring 99 Aluminum Oxide Ceramic Sleeve


    Alumina is an excellent electrical insulator that is resistant to extremely high currents, and its resistance to electricity increases with its purity. The more pure alumina is, the higher the resistance would be.


    Alumina is also known to have a very high melting point and strong mechanical strength. However, its mechanical strength decreases when the temperature goes above 1000 degrees Celsius. Due to the vast difference in its coefficient of thermal expansion, its resistance to thermal shock is less effective when exposed to very high temperatures.




Size Customized by drawings
Material 99% aluminum oxide
Delivery time 30 days
FOB port Shanghai port


Insulating Alumina Ceramic

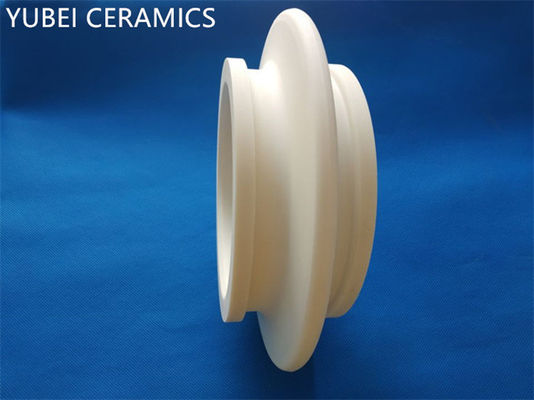

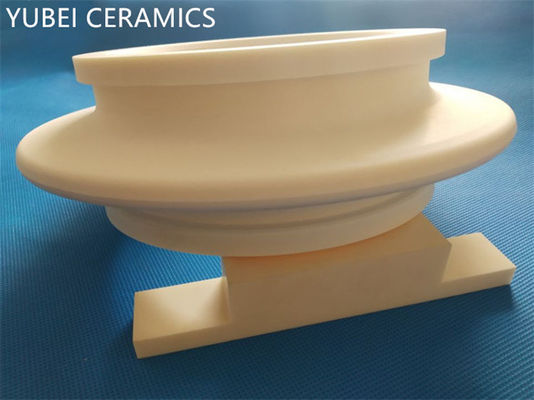

99% Al2O3 Ceramic Insulator Sleeves , Alumina Ceramic Insulator 099% Al2O3 Ceramic Insulator Sleeves , Alumina Ceramic Insulator 1




1. Are you a factory?

    Yes, we're a factory professinally producing industrial ceramics. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.


2. What's the size of it?

    Products are always customized according to drawings or samples. Diameter and height within 500mm are available.


3. What's the price for it?

    It depends. Prices are caculated by the drawing size and structure.


4. What's the production process?

    Our products are made mainly in cold isostatic pressing, dry pressing and hot press moulding technique.


5. How about the delivery?

    Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.


6. How's the packing?

    The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.


7. Can you do the finish maching?

    Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.


8. Which is the nearest port?

    Shanghai port is the nearest one from us. It takes about 2-3 hours to get to shanghai port.
