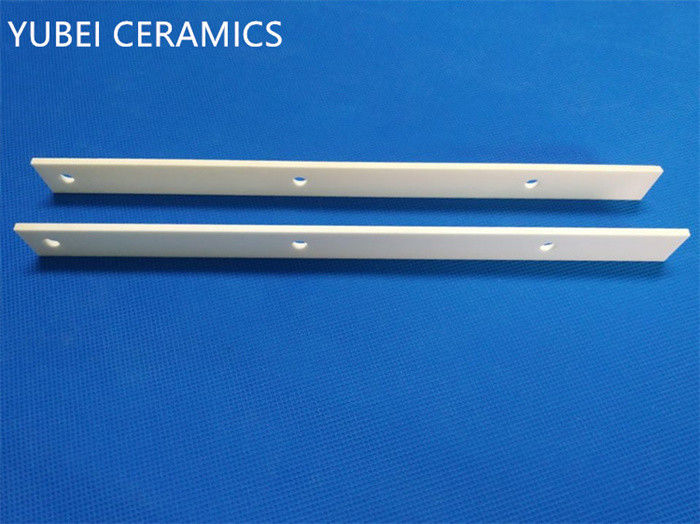

Ivory Alumina Ceramic Bar 3.85g/Cm3 Strong Hardness Insulating Ceramic

Basic Information
Place of Origin: China
Brand Name: YUBEI
Certification: ISO9001
Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: carton or wooden case or pallet packing
Delivery Time: 30 work days
Supply Ability: 300pcs one month
Detail Information
Product Name: Alumina Ceramic Salt Material: 99% Al2O3
Density: 3.85g/cm3 Color: Ivory
Size: Customize Elastic Modulus: 340GPa
High Light:

Ivory Alumina Ceramic Bar

,

Alumina Ceramic Bar 3.85g/cm3

,

Strong Hardness Insulating Ceramic


Product Description

Alumina Ceramic Slat Positioning Ceramic Plate Insulating Ceramic



    Alumina ceramic bar is developed and made of Aluminum Oxide (Al2O3). Alumina is widely used in structural, electronics, medical and electrical fields as one of the most important ceramic oxides.



    Alumina ceramic parts are often used during high temperature demanding and contamination-free reactions. It’s also a good electrical insulator used as a substrate for integrated circuits. Considering alumina’s price, high melting and boiling points, good resistance, strong hardness and good electrical insulation, alumina is widely spread and used all over the world in lots of industries.



Specifications:



Properties Item Unit 99% Alumina 95% Alumina
Mechanical Property Color -- Light Yellow White
Mechanical Property Density g/cm3 3.85 3.6
Mechanical Property Bending Strength MPa 310 300
Mechanical Property Compressive Strength MPa 2400 2300
Mechanical Property Elastic Modulus GPa 340 320
Mechanical Property Fracture Toughness MPam1/2 3-4 3-4
Mechanical Property Weber Coefficient m 12 12
Mechanical Property Vickers Hardness HV0.5 1600 1400
Thermal Property Coefficient of Line Thermal Expansion 10-6K-1 7-8 7-8
Thermal Property Thermal Conductivity W/mK 29 20
Thermal Property Thermal Shock Resistance( in water) ΔT℃ 200 250
Thermal Property Max Working Temperature 1600 1500
Electrical Property Volume Resistance at 20℃ Ωcm >1014 >1014
Electrical Property Dielectric Strength V/m 15X106 15X106
Electrical Property Dielectric Constant εr 10

9



99% Alumina Ceramic

Ivory Alumina Ceramic Bar 3.85g/Cm3 Strong Hardness Insulating Ceramic 0Ivory Alumina Ceramic Bar 3.85g/Cm3 Strong Hardness Insulating Ceramic 1Ivory Alumina Ceramic Bar 3.85g/Cm3 Strong Hardness Insulating Ceramic 2



FAQ:



1. Are you a factory?

    Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.



2. Can you do the finish maching?

    Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.



3. What's the size of it?

    Products are always customized according to drawings or samples. Diameter and height within 500mm are available.



4. What's the price for it?

    It depends. Prices are caculated by the drawing size and structure.



5. How about the delivery?

    Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.



6. How's the packing?

    The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.



7. Which is the nearest port?

    Shanghai port is the nearest one from us. It takes about 2-3 hours to get to shanghai port.
