Product Name: | Ceramic Alumina Plate | Material: | 95% Al2O3 |
---|---|---|---|
Elastic Modulus: | 300GPa | Dielectric Strength: | 15*10^6V/m |
Volume Resistance 20℃: | >10^14Ωcm | Max Temperature: | 1500℃ |
Highlight: | Positioning Alumina Ceramic Plates,Alumina Ceramic Plates 300GPa,Solid High Temp Insulation Board |
Ceramic Positioning Plate Insulating And High Temperature Resistant
Aluminum Oxide is a solid chemical compound of aluminum and oxygen and is the most commonly occuring form of aluminum oxides. Commonly called alumina, it is an outstanding ceramics material due to it’s hardness and high melting point.
Aluminum Oxide is the most commonly used material in technical ceramics, and the chemical, medical and wear industries. It is available in a variety of purities and has an excellent cost-to-material performance record, making it a suitable choice for selected wear liners, mechanical pump seal faces, insulators and other electrical applications.
Properties | Item | Unit | 99% Alumina | 95% Alumina |
Mechanical Property | Color | -- | Light Yellow | White |
Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
Mechanical Property | Bending Strength | MPa | 310 | 300 |
Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
Mechanical Property | Weber Coefficient | m | 12 | 12 |
Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
Electrical Property | Dielectric Constant | εr | 10 |
9 |

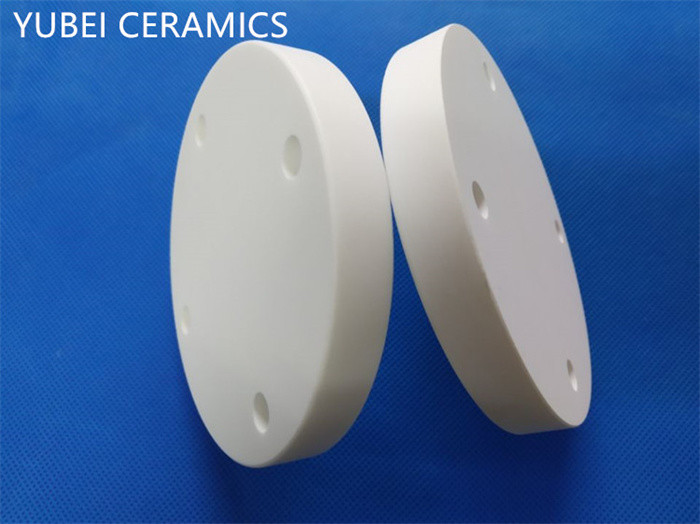

95% Aluminum Oxide Ceramic Plate
FAQ:
1. Are you a factory?
Yes, we're a factory producing industrial ceramics professinally. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. What's the size of it?
Products are always customized according to drawings or samples. Diameter and height within 500mm are available.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. What's the production process?
Our products are made mainly in cold isostatic pressing, dry pressing and hot press moulding technique. Hot press moulding technique, which was used to shape small and medium size and complicated structure ceramic, is a favorable method.
5. How about the delivery?
Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.
6. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.
7. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
8. Which is the nearest port?
Shanghai port is the nearest one from us. It takes about 2-3 hours to get to shanghai port.
