Product Name: | Alumina Ceramic Hammer | Material: | 95% Al2O3 |
---|---|---|---|
Dielectric Constant: | 9 | Thermal Conductivity: | 20W/mK |
Density: | 3.6g/cm3 | Max. Temperature: | 1500℃ |
Highlight: | Wear Resistant Ceramic Material,Structural Wear Resistant Ceramic,Customized Industrial Ceramic Parts |
Supply Wear Resistant Ceramic Industrial Structual Alumina Ceramic
Aluminium Oxide (Alumina) is a widely used ceramic material with many excellent properties. They are grouped together based on purity levels, as the purity of Alumina’s increases, wear and corrosion resistance also increases. Alumina Ceramics are widely used because of their chemical stability, which they maintain at high temperatures. It is a material that is resistant to acids, alkaline, and other chemicals.
Material | 95%, 99%, 99.5% AL2O3 |
Size | Customize |
Pressing process | Dry pressing, cold isostatic pressing, hot press moulding technique |
Finish maching | Lathe, milling machine, grinding machines, carving machines, etc. |
Delivery time | 20-30 days accordingly |
Packing | fragile proof packing, carton, wooden case, pallet |
FOB port | Shanghai port |
MOQ | 2-10pcs accordingly |
Characteristics of alumina ceramics:
* good strength and hardness
* high temperature resistance
* good corrosion resistance
* electrical insulation
* wear-resistant
* affordable
Specifications:
Properties | Item | Unit | 99% Alumina | 95% Alumina |
Mechanical Property | Color | -- | Light Yellow | White |
Mechanical Property | Density | g/cm3 | 3.85 | 3.6 |
Mechanical Property | Bending Strength | MPa | 310 | 300 |
Mechanical Property | Compressive Strength | MPa | 2400 | 2300 |
Mechanical Property | Elastic Modulus | GPa | 340 | 320 |
Mechanical Property | Fracture Toughness | MPam1/2 | 3-4 | 3-4 |
Mechanical Property | Weber Coefficient | m | 12 | 12 |
Mechanical Property | Vickers Hardness | HV0.5 | 1600 | 1400 |
Thermal Property | Coefficient of Line Thermal Expansion | 10-6K-1 | 7-8 | 7-8 |
Thermal Property | Thermal Conductivity | W/mK | 29 | 20 |
Thermal Property | Thermal Shock Resistance( in water) | ΔT℃ | 200 | 250 |
Thermal Property | Max Working Temperature | ℃ | 1600 | 1500 |
Electrical Property | Volume Resistance at 20℃ | Ωcm | >1014 | >1014 |
Electrical Property | Dielectric Strength | V/m | 15X106 | 15X106 |
Electrical Property | Dielectric Constant | εr | 10 |
9 |

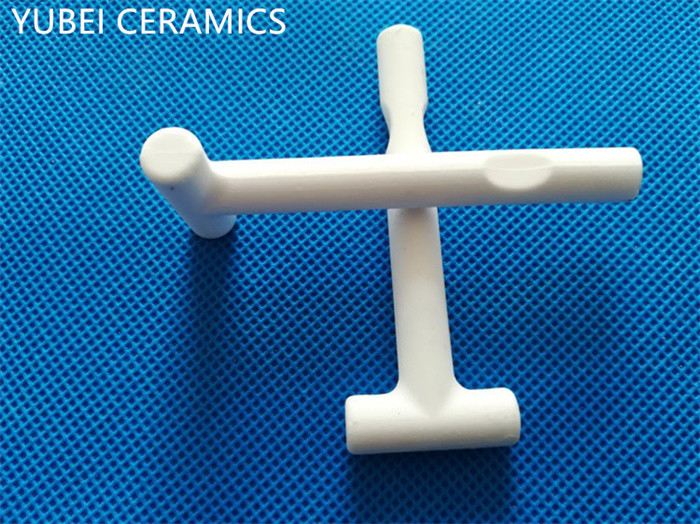

95% Alumina Ceramic
FAQ:
1. Are you a factory?
Yes, we're a factory professinally producing industrial ceramics. Our main products are alumina ceramics, zirconia ceramics and sic ceramics.
2. What's the size of it?
Products are always customized according to drawings or samples. Diameter and height within 500mm are available.
3. What's the price for it?
It depends. Prices are caculated by the drawing size and structure.
4. What's the production process?
Our products are made mainly in cold isostatic pressing, dry pressing and hot press moulding technique.
5. How about the delivery?
Generally speaking, a ceramic production needs about 30 days to finish. Some special products maybe take a longer time. For some simple products, maybe 10-15 days is ok.
6. How's the packing?
The usual packing is cartons, wooden cases, or pallets. Ceramics are fragile products, will use some breakage-proof materials to protect them.
7. Can you do the finish maching?
Yes, we have lathes, grinding machines, milling machines, carves-milling machines to make sure products' accuracy.
8. Which is the nearest port?
Shanghai port is the nearest one from us. It takes about 2-3 hours to get to shanghai port.
